فن سه فاز EBMPAPST مدل 6318/2TDHHPR

توضیحات محصول

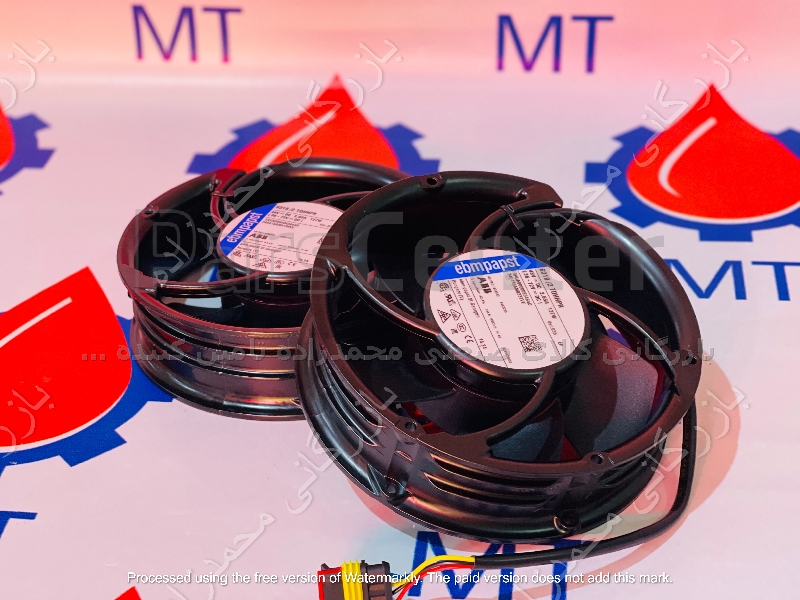

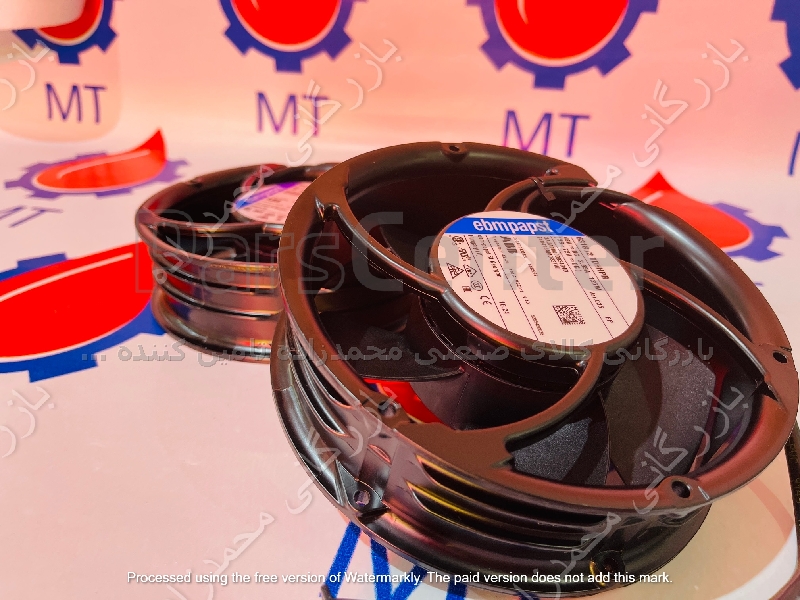

Ebmpapst 6318/2TDHHPR 48V 2.65A
127W 4wires Cooling Fan,refurbished
Ebmpapst 6318/2TDHHPR 48V 2.65A 127W 4wires Cooling
Fan,refurbished
3-phase fan drive with very smooth operation and high efficiency Housing with grounding lug for M4 x 8 screw (Torx) Power consumption when wide open; these values may be considerably higher at the operating point.
Weight 0.910 kg
Dimensions Ø 172 x 51 mm
Impeller material Glass-fiber reinforced PA plastic
Housing material Die-cast aluminum
Airflow direction Exhaust over struts
Direction of rotation Counterclockwise, viewed toward rotor
Storage Ball bearing
Service life L10 at 40 °C 62500 h
Service life L10 at maximum
temperature
25000 h
Cable With leads AWG 18, 20 or
AWG 22, TR 64, speed signal and
control input AWG 22
Motor protection Protection against reverse polarity and blocked rotor.
